Specification Sheet (pdf)

Service Manual (pdf)

Applications
Touring Sound
Live Theatre
Concert Halls
Houses Of Worship
Dedicated Floor Monitor

Features:
• 1200 Watts Continuous Power Handling
• Coherent Wavefront Coaxial Design
• Can be Configured for Left/Right Pairs
• Extremely Low Profile Cabinet Design
• Full 60º x 60º Coverage from 2.5-inch Titanium Diaphragm Horn
• Passive/Active Switch for Full Range or True Bi-amped Operation
• 5/8" (15mm) 11-ply Russian Birch Plywood Cabinet
• Heavy Gauge Perforated All-Metal Grille
• Integrated Handles and Rugged Nylon Glides

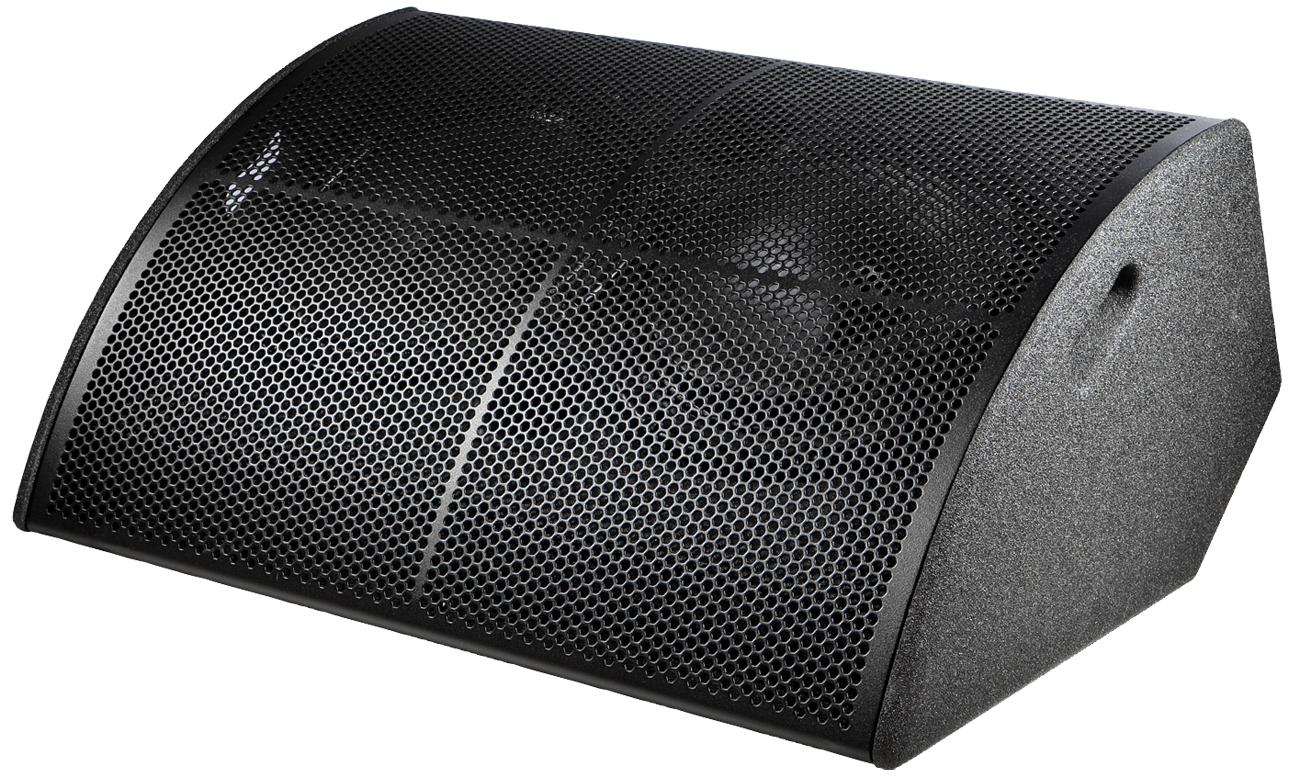

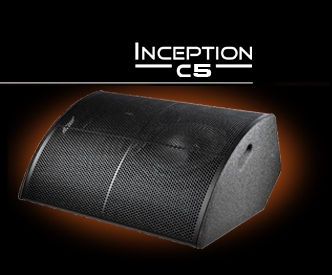

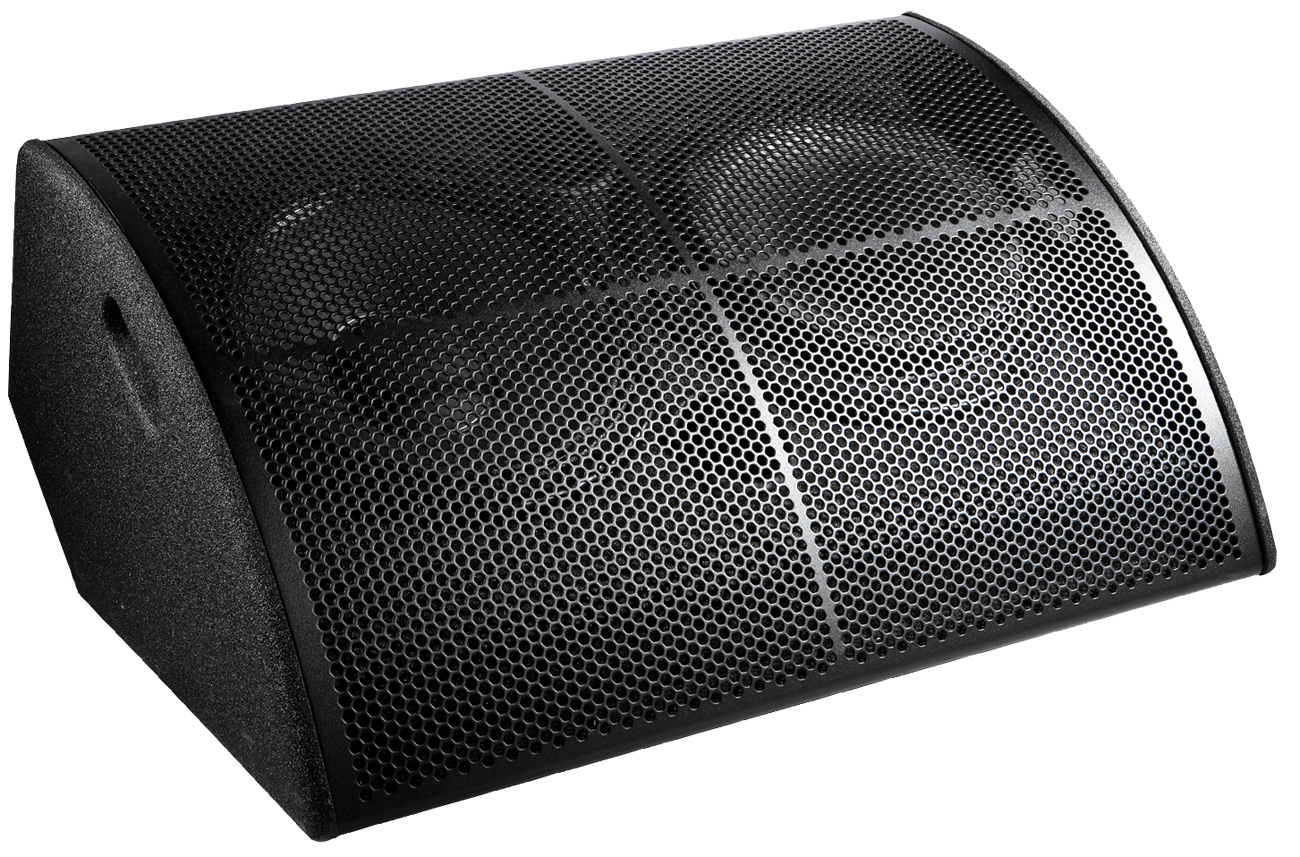

The VTC C5 is a high output low profile 2 x 12-inch stage monitor capable of delivering extremely accurate reproduction and outstanding vocal clarity even in the most demanding professional touring applications. The cabinet angle and uniform 60º x 60º directivity provides optimal coverage for medium and large stage plots.

The Neodymium magnet coaxial driver delivers 180 watts of high frequency program with full 60º x 60º degree coverage from the 2.5-inch titanium diaphragm horn assembly. The dual 12-inch Neodymium woofers component delivers an additional 1200 watts of low frequency support.

An Active / Passive Bypass Switch on the input panel allows the VTC C5 enclosure to run as a full range cabinet with its internal passive crossover network, making it ideal for repeater and side fill applications where quick plug and play connection to a single amp channel is required. In Active mode, the internal crossover is bypassed allowing efficient bi-amp operation of the C5 for critical monitoring applications. The C5 can be opened and modified simply in the field for left or right facing horn configurations.

Built for touring applications, the VTC C5 uses a solid 5/8-inch (15mm) 11-ply Russian Birch plywood cabinet construction; integrated handles and a heavy-gauge perforated all metal grille to protect the speaker components.

Specifications
Driver Components (HF) 180 watt, 8 Ohm driver w/ 2.5" voice coil, Titanium Diaphragm
w/ 1.4-inch exit - Neodymium magnet assembly
Driver Components (LF) 2 x 600 watt, 8 Ohm 12" woofer
w/ 3.5" voice coil- Neodymium magnet assembly
Continuous Power HF: 180 Watts
LF: 1200 Watts
Nominal Impedance HF: 8 ohms
LF: 4 ohms
Frequency Response 60Hz - 20kHz (with recommended processing)
Sensitivity (1w/1m) HF: 110dB
LF: 99dB
Calculated Max Output (average) HF: 132dB
LF: 127dB
Nominal Coverage Horizontal: 60°
Vertical: 60°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4 in parallel (x2)
Dimensions (DWH, inches) 20.3 x 28.5 x 12.1
Dimensions (DWH, cm) 51.6 x 72.4 x 30.7
Weight (lbs/kg) 62.6 / 28.4
