Features:
• Paraline High Frequency Horn Element (patent pending)
• Highly Efficient Synergy Horn Design (patent pending)
• 10° Vertical Directivity Adjustable In 1° Steps
• 90° Horizontal Directivity
• Available in Touring and Fixed Installation Versions
• Excellent for All Throw Distances
• Unparalleled Clarity, Intelligibility & Precision
• Advanced DLMS4080 Digital Loudspeaker Management System
• Unequaled Price/Size/Flexibility/Performance Ratio
• 5/8-inch Baltic Birch Cabinet Construction
• Designed and Manufactured in North America

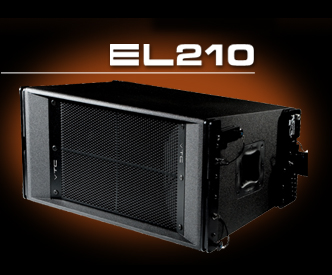

The Elevation Series EL210t (touring) and EL210i (installation) medium format line array cabinets solve the limitations presented in conventional loudspeaker design using the Synergy Horn and Paraline lens technologies invented by Tom Danley and licensed to VTC Pro Audio.

Specifications
Configuration Passive Bi-amplified (processor controlled)
Driver Components (HF) 80 watt, 16 ohm driver - 1.75" annular polyester diaphragm
with 1" exit - Neodymium magnet assembly (x2)
Driver Components (LF/MF) 600 watt, 16 ohm 10" woofer w/ 2.5" voice coil
Neodymium magnet assembly (x2)
Frequency Response 55Hz - 20kHz (with recommended DSP processing)
Program Power HF: 160 Watts
LF: 1200 Watts
Nominal Impedance HF: 8 ohms
LF: 8 ohms
Sensitivity (1w/1m) HF: 113dB (single cabinet measured in free space)
LF: 98dB (single cabinet measured in free space)
Maximum SPL HF: 136dB (single cabinet measured in free space)
LF: 129dB (single cabinet measured in free space)
Nominal Coverage Horizontal: 90°
Vertical: 10°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4 in parallel (x2)
Pin Configuration (Biamp) HF: +2/-2
LF: +1/-1
Attachment Points Integral, adjustable rigging system, vertical splay
adjustable in 1° increments from 0 ° to 10°
Dimensions (DWH xbackW, inches) 19.5 x 28.4 x 15.3 x 11.9
Dimensions (DWH xbackW, cm) 49.5 x 72.1 x 38.9 x 30.2
Weight (lbs/kg) 89 / 40.5
Specifications subject to change without notice
