Features:
• Tapped Horn Subwoofer design (patent pending)
• Available in Touring and Fixed Installation Versions
• Excellent for All Throw Distances
• Low distortion with exceptionally high SPL
• Unparalleled Clarity, Definition & Punch
• Advanced DLMS4080 Digital Loudspeaker Management System
• Unequaled Price/Size/Flexibility/Performance Ratio
• 5/8-inch Baltic birch cabinet construction
• Designed and Manufactured for VTC Pro Audio in North America

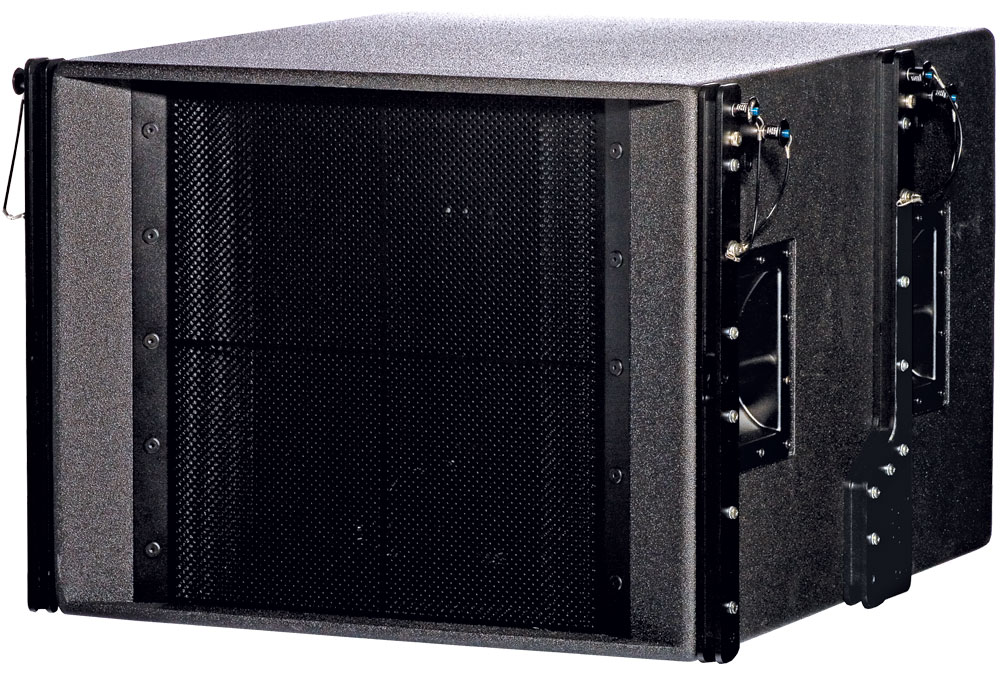

The Elevation Series ELS212t (touring - flyable) and ELS212i (installation - not flyable) Subwoofers are dual 12", 4 ohm, 1600-watt subwoofers with long excursion neodymium woofers capable of achieving 134db SPL down to 40Hz at -3db. Using an innovative new technology developed by Tom Danley called a Tapped Horn design (patent pending), the Tapped Horn maximizes driver efficiency by allowing radiation from the rear of the driver to enter the system at a tap, located further down the horn flare towards the mouth.

Specifications
Configuration Tapped Horn Passive Subwoofer
Driver Components 12" Long Excursion Neodymium Woofers (x2)
Frequency Response 40Hz - 200Hz (-3dB)
35Hz - 260Hz (-10dB)
Program Power 1600 Watts
Nominal Impedance 4 ohms
Sensitivity (1w/1m) 103dB (single cabinet measured in free space)
Maximum SPL 134dB (single cabinet measured in free space)
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4MPR in parallel (x2)
Dimensions (DWH, inches) 33 x 28.4 x 22.5
Dimensions (DWH, cm) 83.8 x 72.1 x 57.2
Weight (lbs/kg) 169.5 / 77
Specifications subject to change without notice
