Applications
Touring Sound
Live Theatre
Concert Halls
Houses Of Worship
Delay/Repeater Cabinet
Side/Center/Down Fill

Features:
• 1420 Watt 15 / 2-inch Cabinet Configuration
• 60 Degree Trapezoidal Enclosure
• 5/8-inch (15mm) 11-ply Russian Birch Plywood Cabinet
• 20 Integrated Flypoints

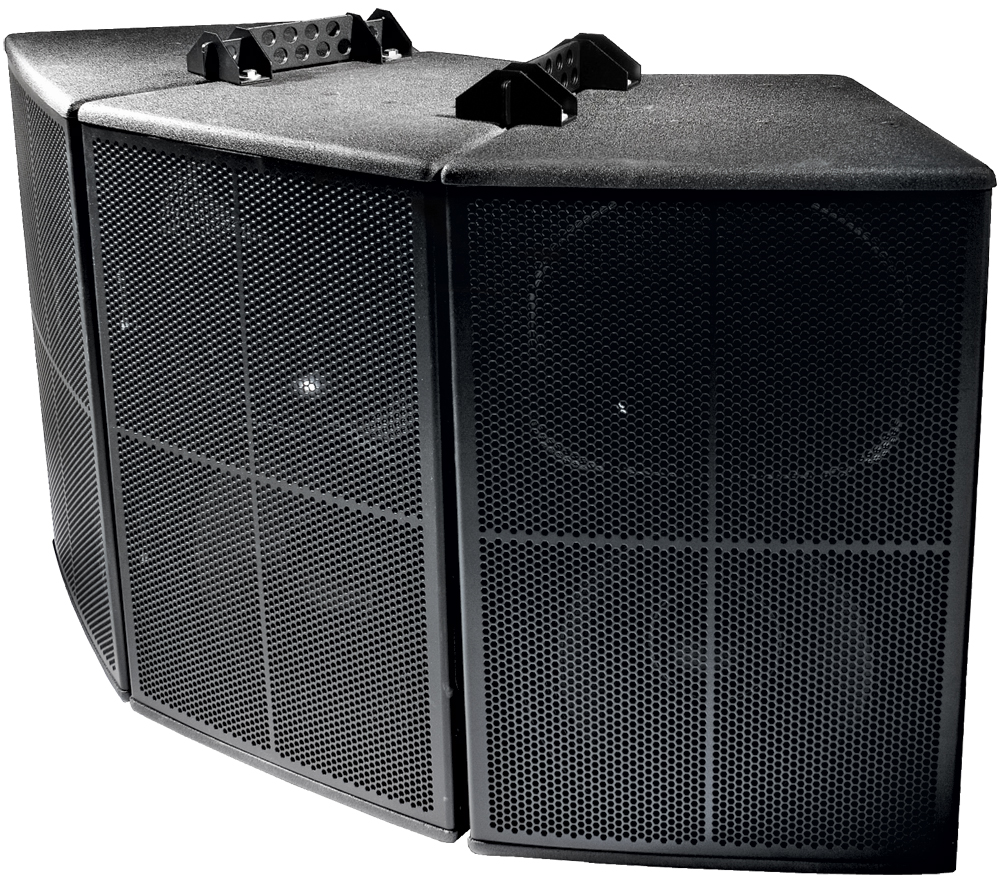

• Innovative Installation Hardware Available for Cluster Hangs
• All-metal Speaker Stand Adaptor
• Heavy Gauge Perforated All-Metal Grille
• Integrated Handles
• Rugged Nylon Glides

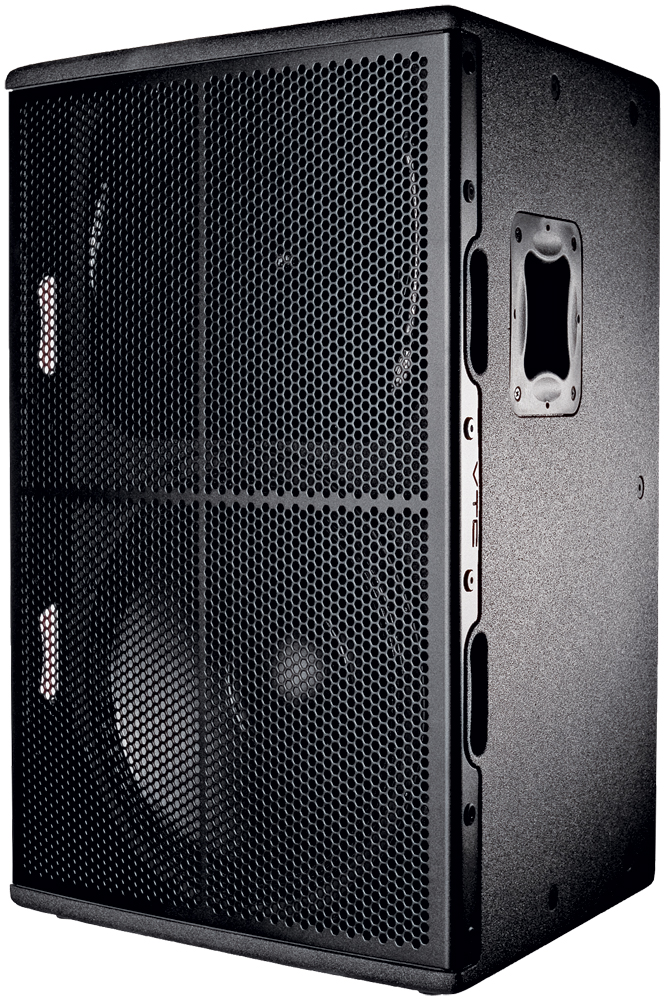

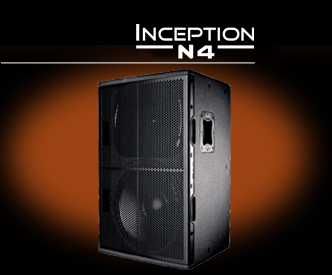

The VTC Inception Series N4 15 / 2-inch loudspeaker enclosure delivers 1420 watts (continuous power) in an extremely versatile trapezoidal cabinet design. The Inception Series N4 is the ideal point source full range cabinet for front-of-house, installation or sidefill applications.

An Active / Passive Bypass Switch on the input panel allows the VTC N4 to operate as a full range cabinet with its internal passive crossover network, making it ideal for repeater and side fill applications where quick plug and play connection to a single amp channel is required. In Active mode, the internal crossover is bypassed allowing efficient bi-amp operation of the N4 for critical monitoring and sound reinforcement applications.

The horn structure is made from high-pressure die-cast polyurethane foam which reduces resonances and vibrations and assures maximum strength. The 60 by 50 degree elliptical shaped horn provides low distortion and a spherical wave-front, avoiding reflections and other disadvantages usually associated with diffraction horns.

An integrated 1 3/8-inch (3.5cm) pole mount adaptor allow the N4 to be used on standard heavy-duty speaker stands for side and center-fill applications where maximum SPL and coverage is required from a compact cabinet source.

Built for touring applications, the 80lb (36.4kg) VTC N4 uses a solid 5/8-inch (15mm) 11-ply Russian Birch plywood cabinet construction, integrated handles and a heavy-gauge perforated all metal grille to protect the speaker components.

Specifications
Driver Components (HF) 8 Ohm driver w/ 3-inch voice coil, Titanium Diaphragm with
1.4-inch exit - Neodymium magnet assembly
Driver Components (LF) 4 Ohm 15-inch woofer w/ 4-inch voice coil- Neodymium
magnet assembly
Frequency Response 50Hz - 18kHz (with recommended DSP processing)
Program Power HF: 110 watts nominal / 220 watts continuous
LF: 600 watts nominal / 1200 watts continuous
Nominal Impedance HF: 8 ohms
LF: 4 ohms
Frequency Response 50Hz - 20kHz (with recommended processing)
Sensitivity (1w/1m) HF: 110dB
LF: 98dB
Calculated Max Output (average) HF: 133dB
LF: 129dB
Crossover Frequency 850Hz
Nominal Coverage Horizontal: 60°
Vertical: 50°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4 in parallel (x2)
Dimensions (DWH, inches) 18 x 20 x 29
Dimensions (DWH, cm) 45.8 x 50.1 x 73.7
Weight (lbs/kg) 80 / 36.3
