• Easily drives reactive phase shifted loads
• Advanced protection schemes including DC voltage load, thermal and
• breaker protection
• Switchable peak limiter that is transparent below clipping levels
• Soft turn-on circuit eliminates damage to loudspeakers and prevents
• Computer-optimized Silentfan™ front-to-rear cooling system
• Long-life, faceplate-mounted, user serviceable air intake filters
• Front panel Power, Protect, Activity and Clip LED's
• Speakon™ outputs
• Balanced XLR & 1/4" TRS Balanced inputs & Thru-puts
• Sturdy all-steel construction
Designed specifically to meet the demands of heavy-duty live sound reinforcement touring systems and large-scale installations, the VTC Pro Audio V-Series V64 power amplifier uses a proven Class-H topology to deliver reliable, high headroom output power. Engineered for VTC Pro Audio by Yorkville Sound and manufactured at their Canadian factory, V-Series amplifiers are the culmination of Yorkville's forty-plus years of professional audio design expertise and manufacturing experience.
Engineered with a low noise signal path and a high current, reduced stray magnetic field toroidal transformer to reduce potential hum and noise, the multi -tier power conversion design delivers superior transient response and low measured distortion - equal to the best of analog amplifier design.
An impedance aware design deals with the realities of driving typical reactive speaker loads and addresses the associated problems such as thermal shutdown, inductive snap-back, and premature current limiting. V-Series amplifiers will easily drive reactive phase shifted loads while remaining fully protected against accidental short circuits.
An advanced protection scheme ensures the loudspeaker won't experience harmful DC offset voltages while protecting the amplifier from abnormal load, AC power brownout, and high temperature failures. A user-defeatable transparent peak limiter lowers distortion at high power operating conditions, and provides ample protection for the loudspeaker's components. A 'soft turn-on' circuit eliminates transient damage to connected loudspeaker systems and prevents nuisance circuit breaker-tripping during the amplifier's power up procedure.

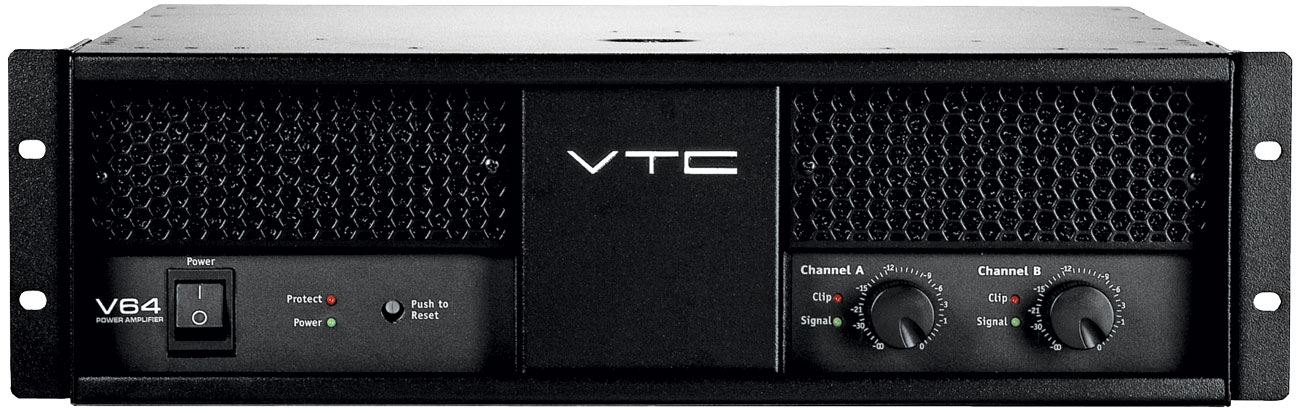

The computer-optimized (Silentfan™) front-to- rear cooling system incorporates ultra-quiet, variable-speed internal fans ensuring that the output power transistors operate with ample thermal margin. For ease of maintenance the amplifiers are supplied with long-life, faceplate-mounted, user serviceable, air intake filters. Front panel Power, Protect, Activity and Clip LED's are bright and easy to see and all knobs are recessed for safe, easy transportation.
