Specification Sheet (pdf)

Owners Manual (pdf)

ProControl Software v2.12 - XP (zip) *Updated 7/16/2009*

Factory Settings (zip)

Factory Settings (pdf) *Updated 10/7/2009*

Firmware Upgrade to v7.06 (zip)

.NET Framework v3.5 SP1 (zip)

Applications
Front-Of-House Loudspeaker Management
Floor Monitors
Delay/Repeater Speakers
Time/Phase/Crossover Alignment
Acoustic Correction
Room Equalization

Features:
• 4 XLR inputs and 8 XLR outputs can be configured in any fashion
• Top sound quality in its class
• 8 band Parametric EQ and 31 band Graphic EQ on all inputs and outputs
• Input and Output Crossovers with Bessel, Linkwitz-Reilly and
Butterworth slopes
• Input Compressors and Output Limiters
• Precise frequency control is achieved down to a 1Hz resolution

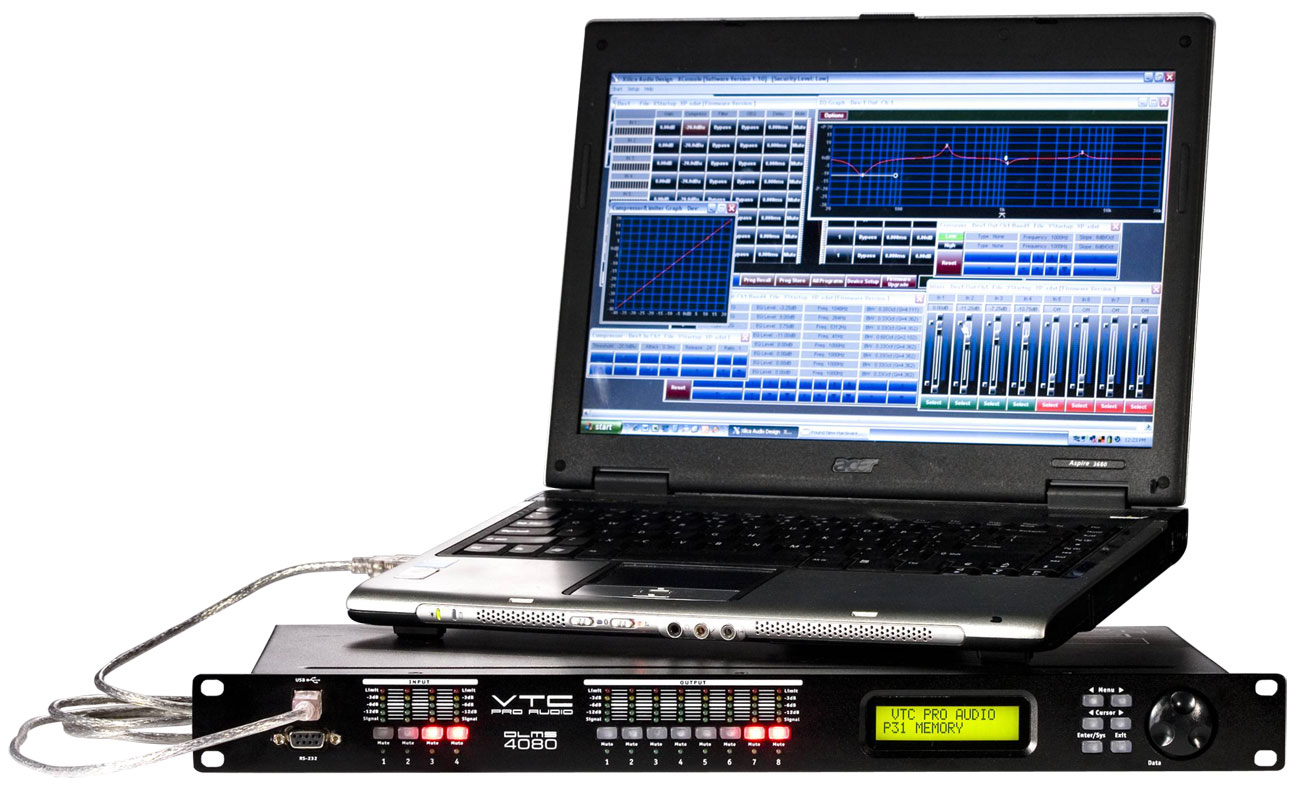

• PC based editing software for onscreen control of all parameters

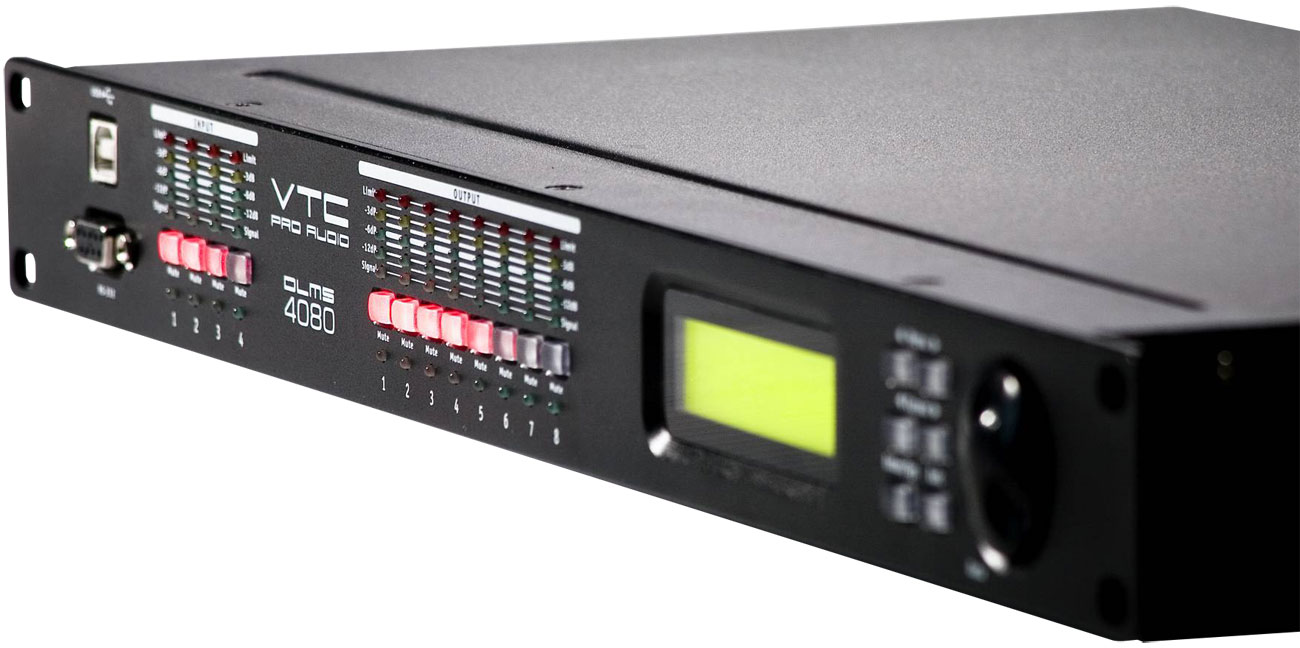

The DLMS4080 is a self-contained, fully programmable, Digital Loudspeaker Management System capable of handling full control of the Elevation Series or any other loudspeaker system.

The four inputs and eight outputs can be routed in multiple configurations to meet any system requirement. Full system setup and configuration can be done in real time from the front panel or with the intuitive PC based graphic user interface (GUI) software via the on-board RS232, Ethernet or USB port when more complex system control is required.

Specifications
Input Impedance >10k Ohms
Output Impedance 50 Ohms
Maximum Level 50 Ohms
Frequency Response +/- 0.1dBu (20Hz - 20kHz)
Dynamic Range 115dB typical (unweighted)
CMRR >60dB (50Hz - 10kHz)
Crosstalk <-100dB
Distortion 0.002% (1kHz @+4dBu)
Processor 40-bit floating point
Sampling Rate 48kHz
Analog Converters Super Performance 24-bit
Propagation Delay 1.8ms

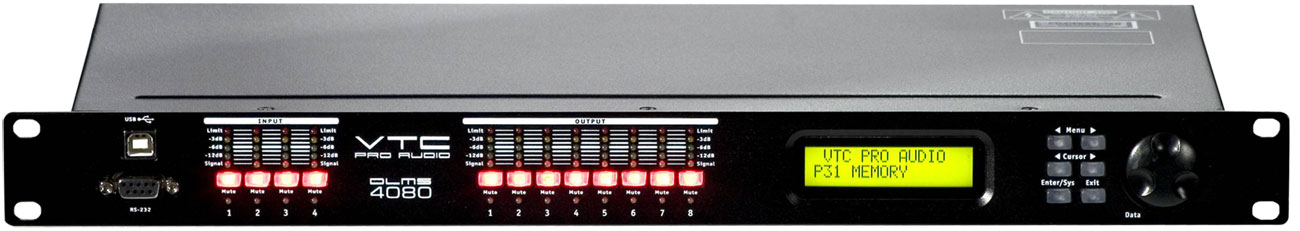

Display 2 x 16 Character Backlit LCD
Level Meters 5 segment LED's

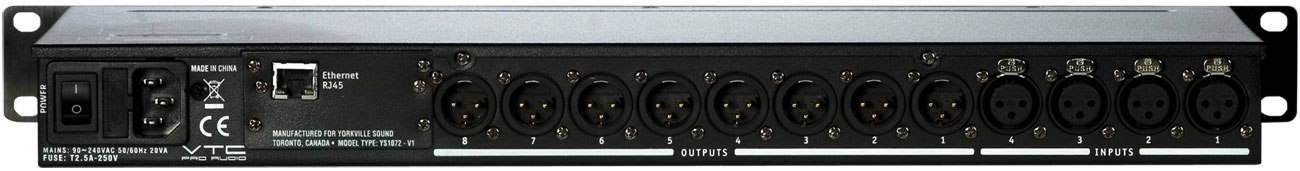

Connectors Analog: 3-pin XLR
RS-232 Female DB-9
Ethernet Standard CAT-5
USB USB 1.0 compliant
Power 90-240VAC (50 / 60Hz)
Dimensions (DWH, inches) 9 x 19 x 1.75
Dimensions (DWH, cm) 22.9 x 48.3 x 4.4
Weight (lbs/kg) 10 / 4.6
