Features:
• 800 Watt Full Range Biamplified Passive Line Array Cabinet
• Uses Proven Highly efficient Synergy Horn Design (patent pending)
• Paraline High Frequency Horn Element (patent pending)
• 15° Vertical Directivity (flyware adjustable In 1° Steps)
• 110° Horizontal Directivity

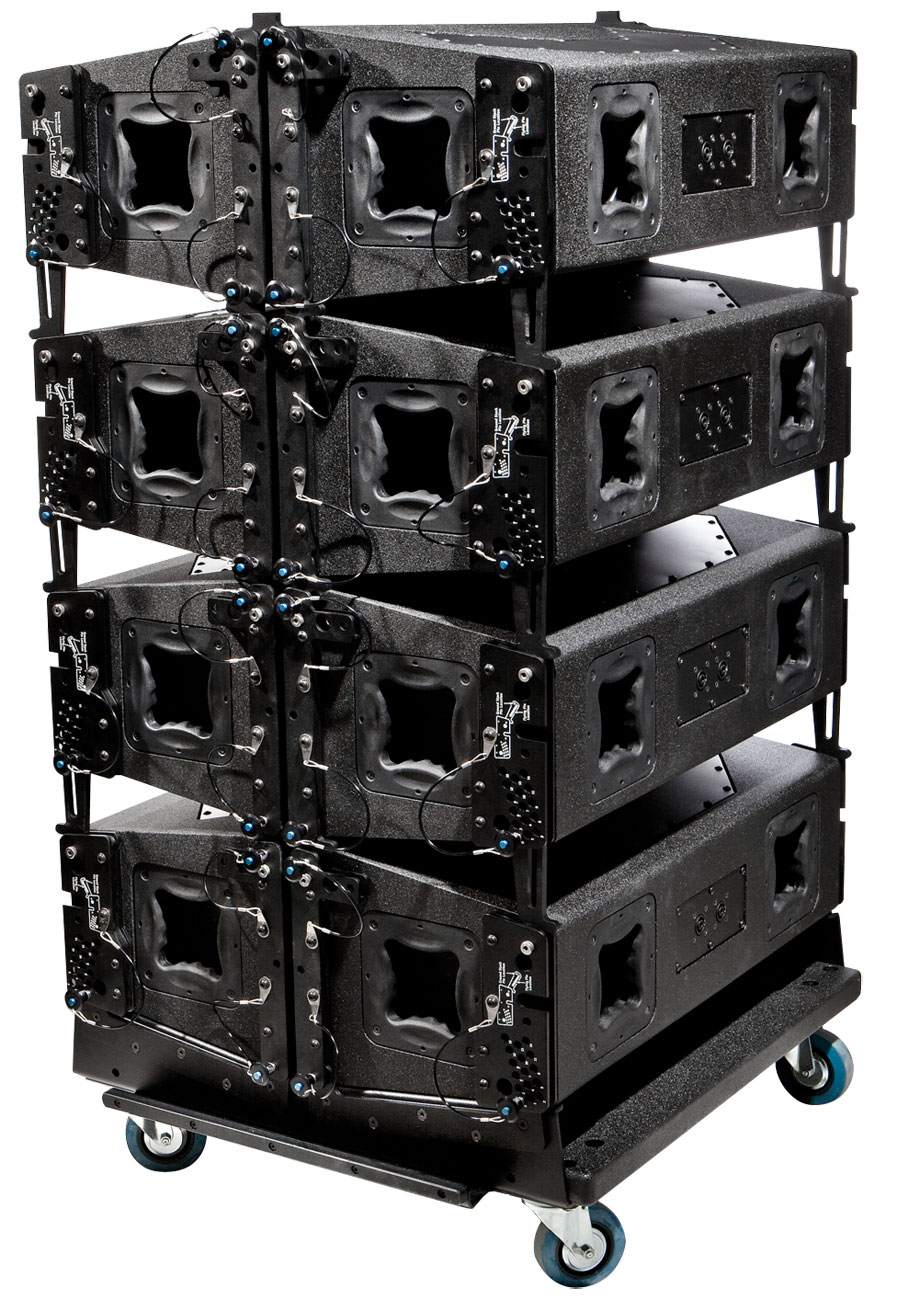

• Stacks Eight Cabinets per Dollyboard for Efficient Transport

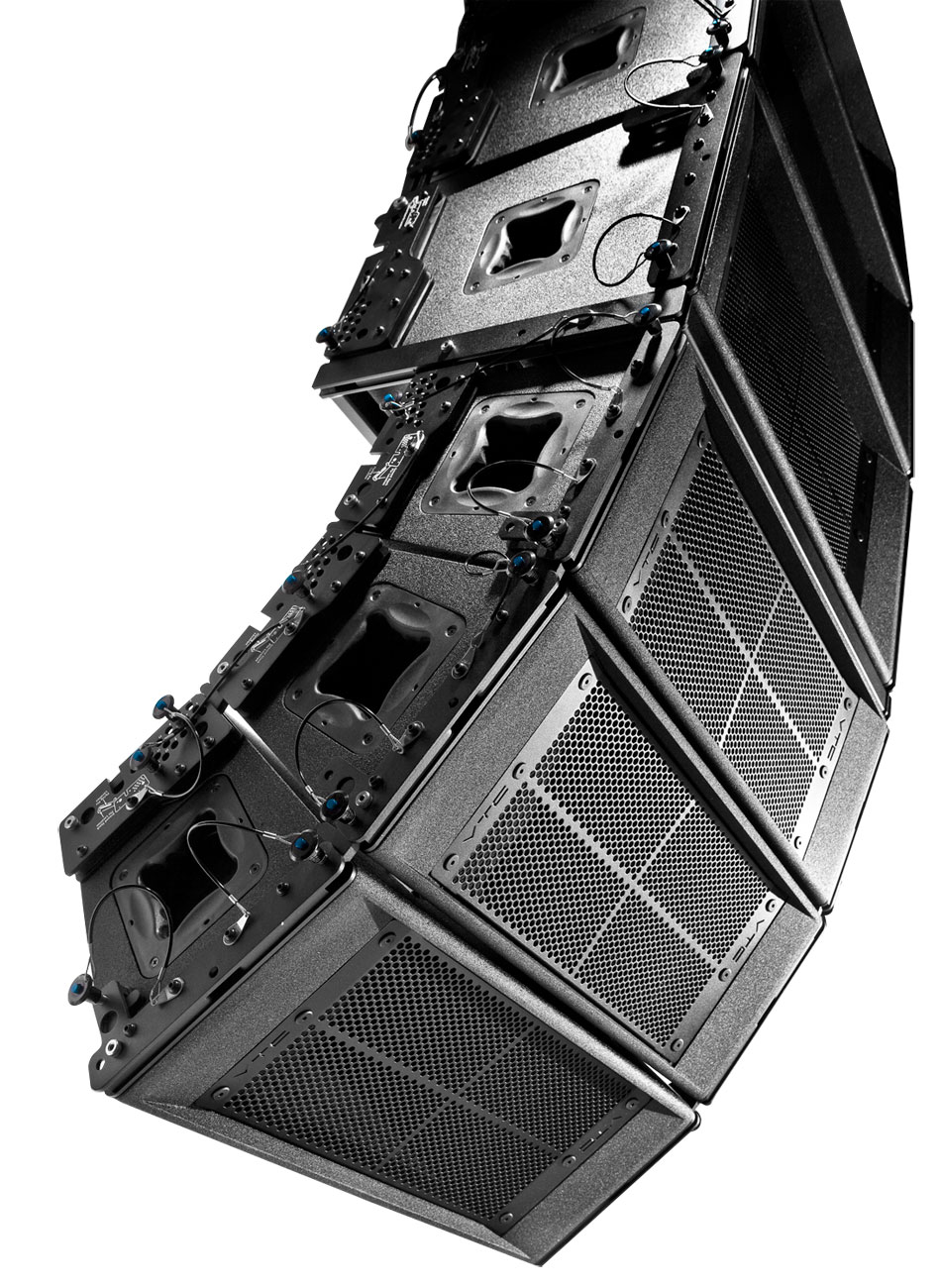

• Adaptive Flyware Bumper Adds Cabinets Below EL210T Array for Downfill
• System Bumper Available for Flying EL208T Arrays
• Designed and Manufactured in North America

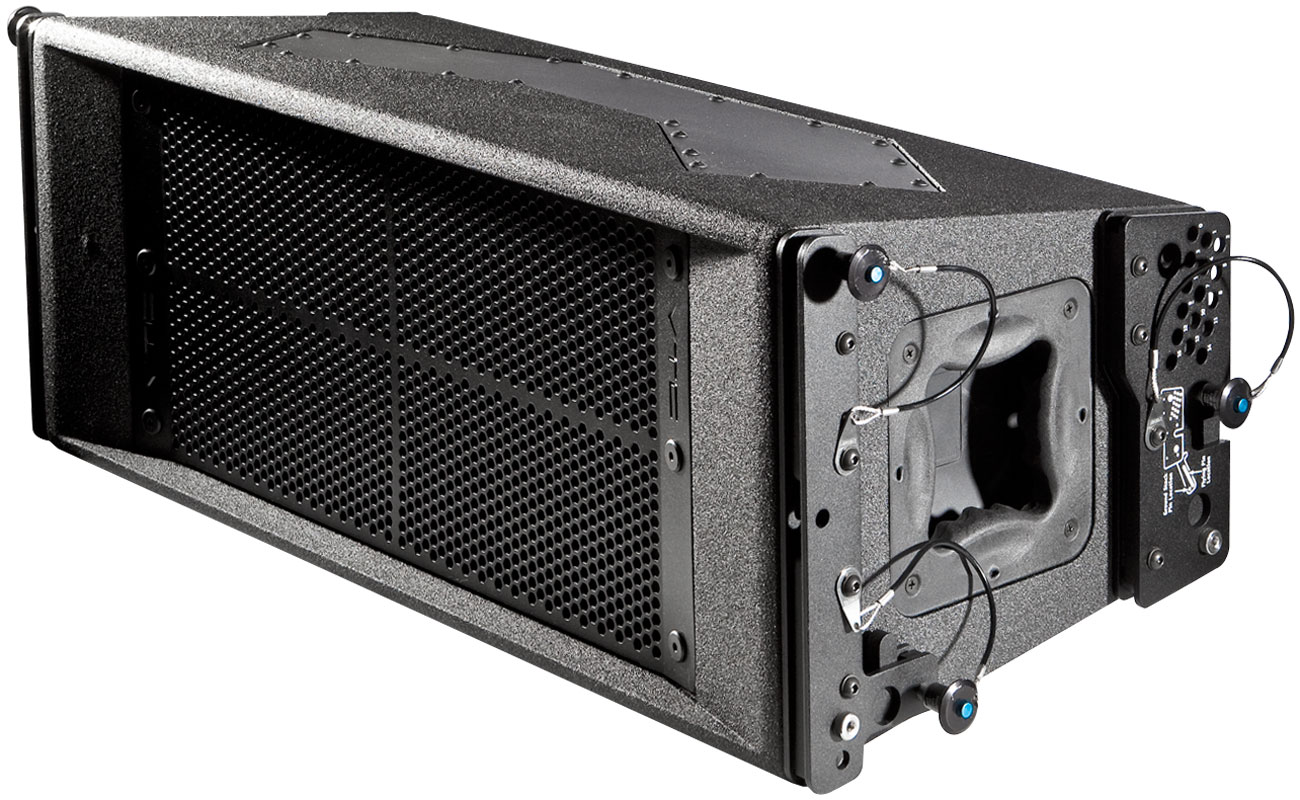

The new EL208T line array cabinet uses proven Synergy Horn technology and VTC Pro Audio’s patented Paraline Lens design to deliver an exceptionally flat frequency response and excellent directivity control in the most compact Elevation Series cabinet in the series.

Designed to be the ideal downfill cabinet for large-scale VTC Elevation Series concert systems, the EL208T can also act as a compact vertical line array enclosure for smaller venues or medium sized installations.

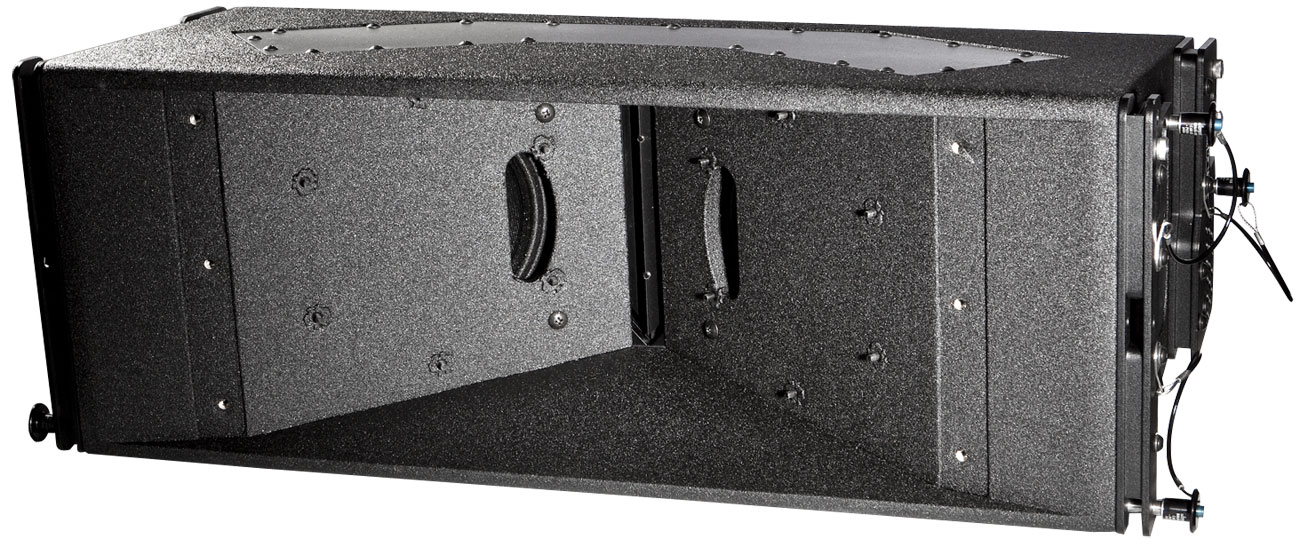

Two 8-inch low/mid frequency drivers are mounted to the Synergy Horn along with one 1-inch compression driver mounted on a Paraline horn element in the EL208T. This coaxial horn arrangement uses the entire front area of the enclosure as the horn mouth for both mid and high frequencies maximizing horn size, and improving directional control at lower frequencies (longer wavelengths) while maintaining reasonable overall enclosure size.

Elevation Series enclosures are built in North America and use B&C 8-inch drivers, and BMS compression drivers mounted to the patented Paraline horn lens and 5/8-inch Baltic birch plywood cabinet construction.

Specifications
Configuration Passive Bi-amplified (processor controlled)
Driver Components (HF) 80 watt, 16 ohm driver - 1.75" annular polyester diaphragm
with 1" exit - Neodymium magnet assembly
Driver Components (LF/MF) 400 watt, 16 ohm 8" woofer
Neodymium magnet assembly (x2)
Program Power HF: 80 Watts
LF: 800 Watts
Nominal Impedance HF: 16 ohms
LF: 8 ohms
Nominal Coverage Horizontal: 110°
Vertical: 15°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4 in parallel (x2)
Pin Configuration (Biamp) HF: +2/-2
LF: +1/-1
Specifications subject to change without notice
