Specification Sheet (pdf)

Features:

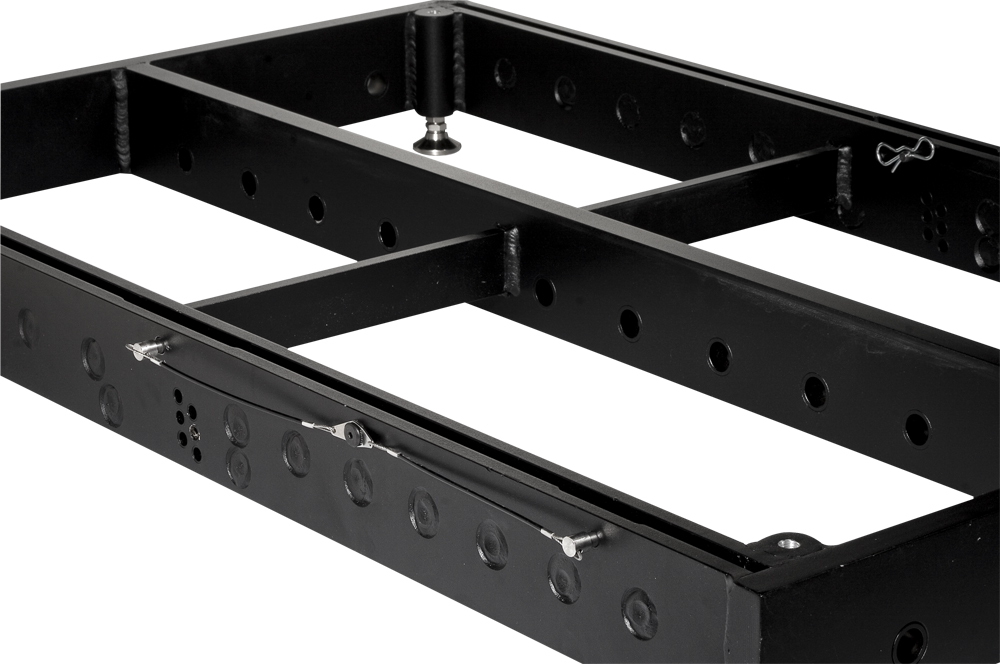

• Heavy Duty flying grid custom designed for all Touring Versions of the
Elevation Series cabinets and subwoofers
• Bumper is handmade from high grade, precision-milled aluminum in
North America
• Extremely secure and stable design is an excellent platform for ground
stacking arrays
• Supports arrays up to 1675lbs (729kg)
• Adjustable leveling feet included for maintaining a level ground stack
• All hardware included for one simple system solution
• Multiple flypoints for numerous rigging options and angles
• Ideal for Quick Setup & Teardown

Quick set up and teardown is critical in high quality sound reinforcement. The Elevation Series exclusive integrated rigging hardware for the EL210t cabinets and ELS212t subwoofers allow enclosures to be easily and securely locked together and flown in large arrays.

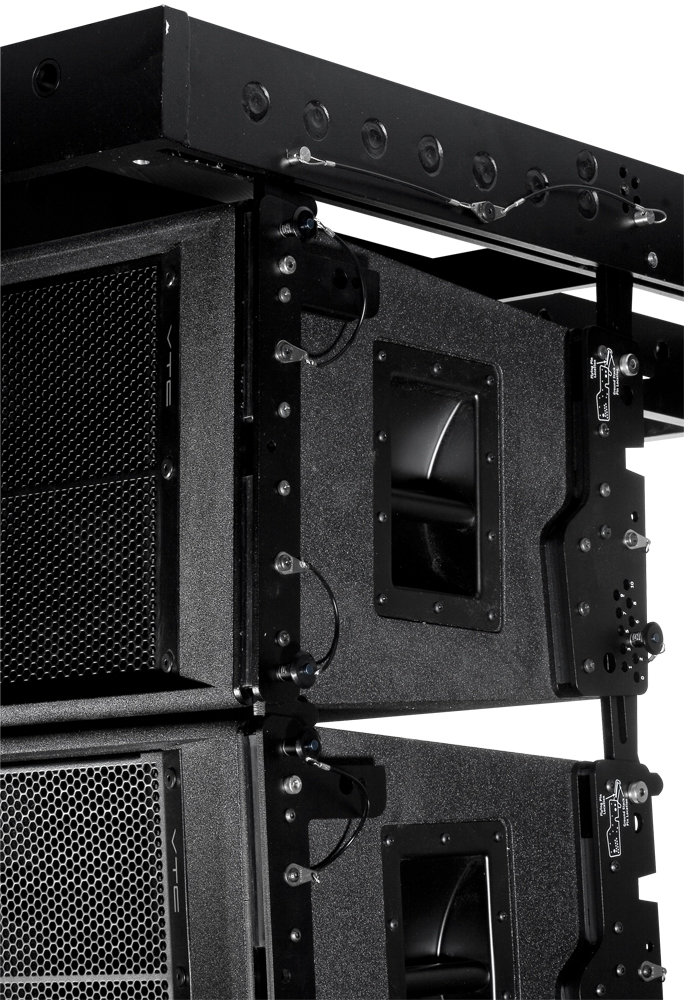

The custom designed rigging hardware of each touring enclosure provides a rugged, extremely secure suspension system for flown arrays. Individual cabinets are attached together and angled using quick-attach pins, included with the cabinets. Use only Jergens stainless steel quick pins (part # 800650) supplied (Equivalent Yorkville Part # 8951).

Proper location of speakers and flypoints is a key component in any system design. The convenience of a quick set up and teardown is critical in high quality sound reinforcement. The Elevation Series exclusive integrated rigging hardware for the EL210t cabinets and ELS212t subwoofers allows enclosures to be easily and securely locked to one another by simply swinging a hinged bar into place and securing it with the included quick release pins. The custom designed rigging hardware on each touring enclosure provides a rugged, extremely secure suspension system for flown arrays where individual cabinets are attached together and angled using quick-attach pins, included with the frame.

As a flying system, the ELB16 is both ingeniously simple and supremely flexible. Each loudspeaker in the array can easily be configured at precise angles to take full advantage of the directional characteristics of each component. A properly designed rigging system enhances arraying capabilities and substantially improves overall system performance. The versatile ELB16 bumper is also the ideal platform for building secure, level vertical ground stacks for venues where a flown array is not the ideal system solution but superior sound performance is still paramount.

The ELB16 bumper can handle up to 18 EL210t boxes in a flown straight vertical array. Elevation Series ELS212t subwoofers can be flown in the same vertical array with the EL210t full range enclosures for convenient fully flown touring systems.

Specifications
Capacity (lbs/kg) 1675 / 729
Materials Aluminum Alloy 5083-H321 6061-T6 or Equivalent
Finish Black powder coat
Included Accessories 4 x Stainless steel leveling Feet
4 x Jergens stainless steel pins with lanyards
4 x Bowtie cotter pins
Dimensions (DWH, inches) 51.7 x 28.92 x 4
Dimensions (DWH, cm) 131.3 x 73.5 x 10.2
Weight (lbs/kg) 105 / 47.3
