Applications
Touring Sound
Live Theatre
Concert Halls
Houses Of Worship
Small to Medium-sized Events
Front / Down / Under Balcony Fill

Features:
• Ideal For Front Fill or Under-Balcony Installation Applications
• Dual 6-inch Long Excursion Drivers in Low Profile MTM Configuration
• 500 Watts Program Power , Nominal 8-ohm Load
• Sensitivity is 95db (@1 watt / 1m)
• 90H x 30V High Frequency Dispersion
• Passive Operation Only (No Bi-amplification Required)
• Solid Plywood Cabinet Construction
• All Metal Sonically Transparent Grille

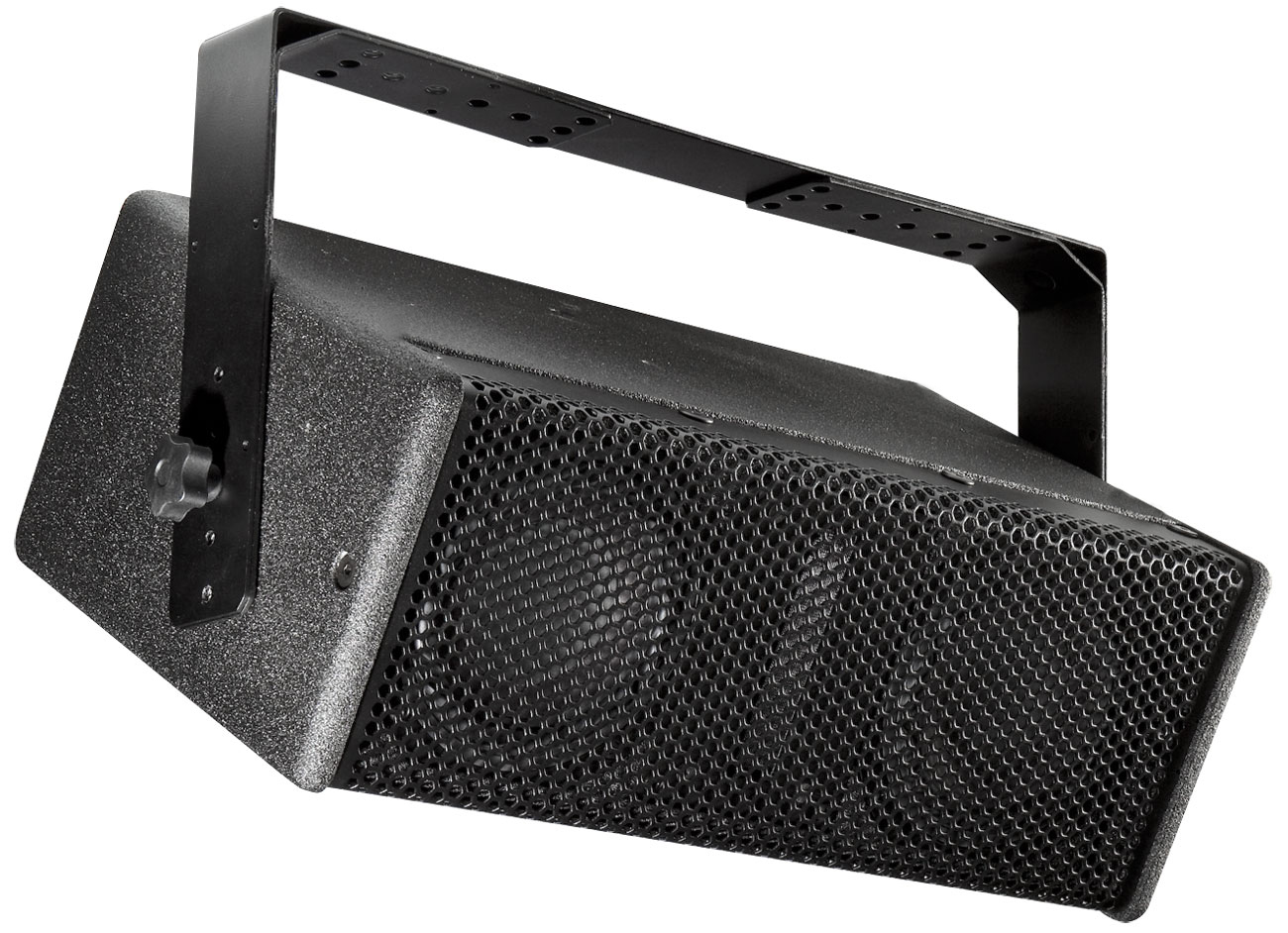

• Optional "U" Shaped Installation Hardware Bracket (FF1BRKT)

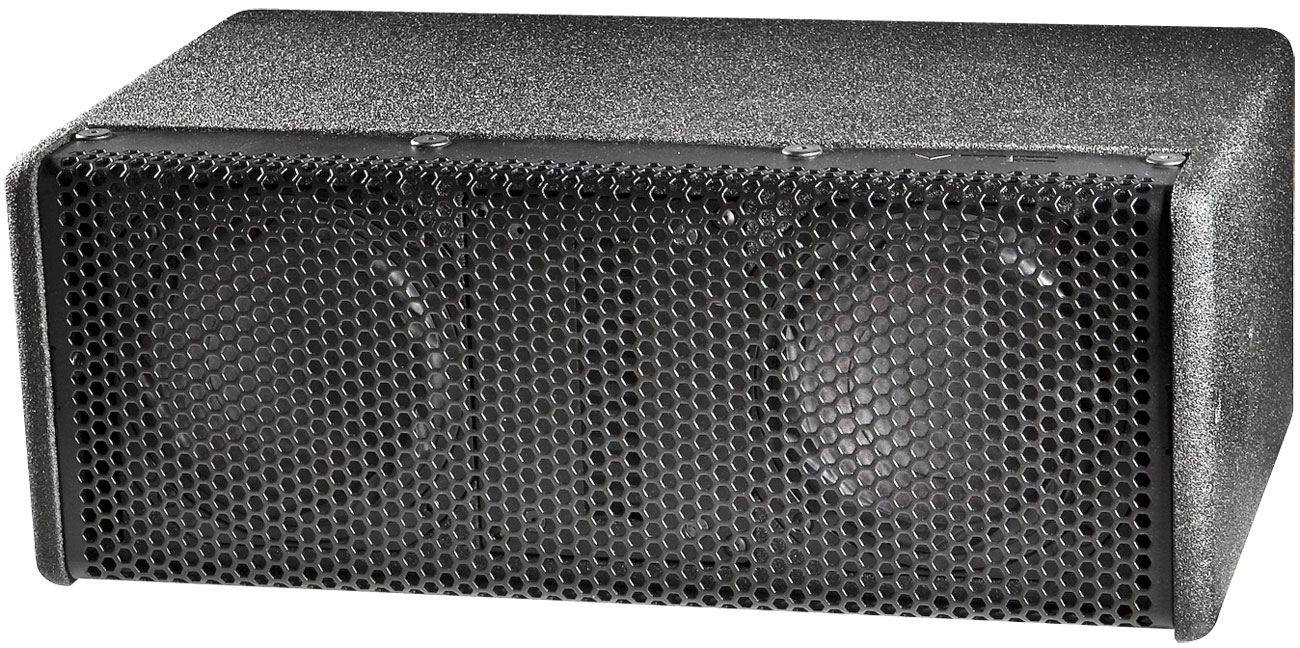

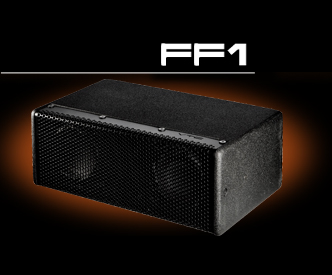

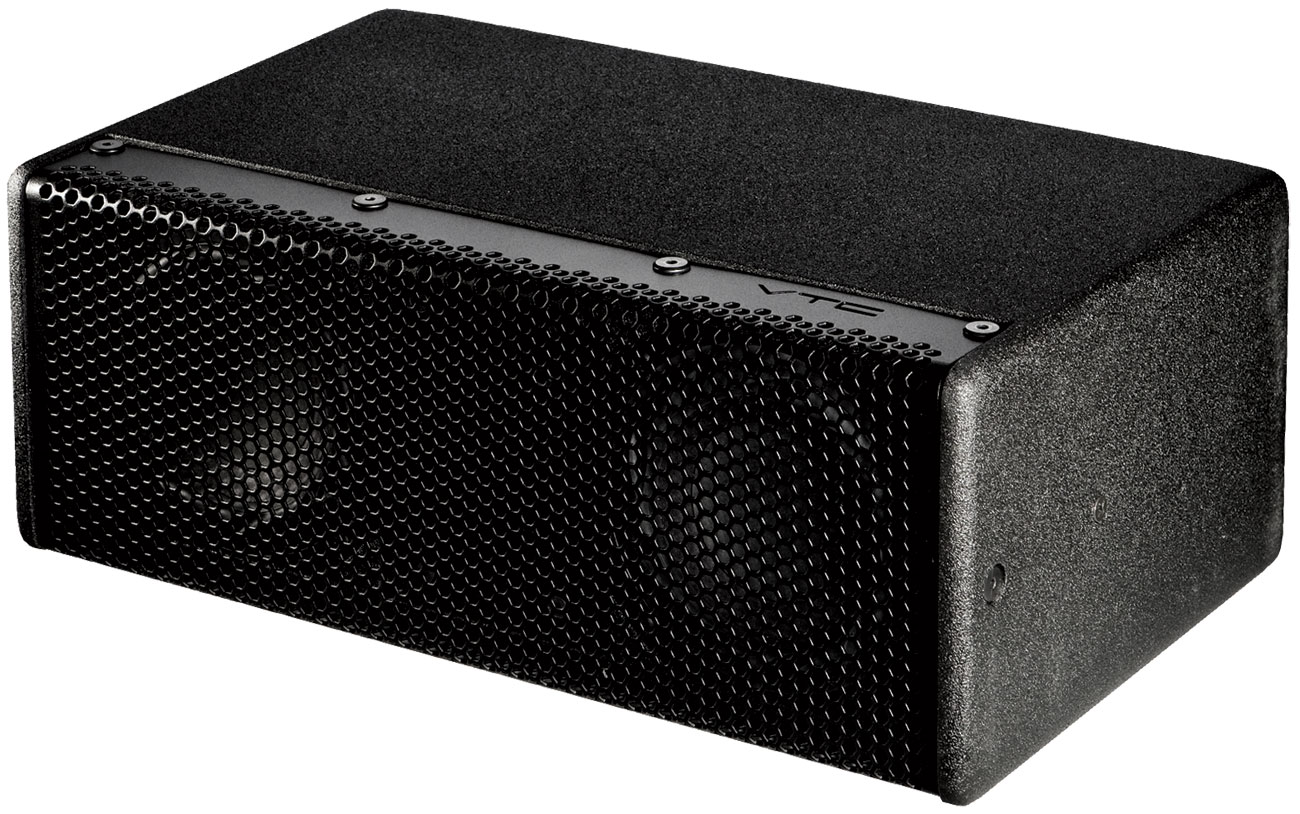

The VTC FF1 Cabinet is the ideal low-profile front fill cabinet for use with any size concert, theatre and touring systems. It is also an excellent choice as a fill, repeater or under-balcony cabinet for installations.

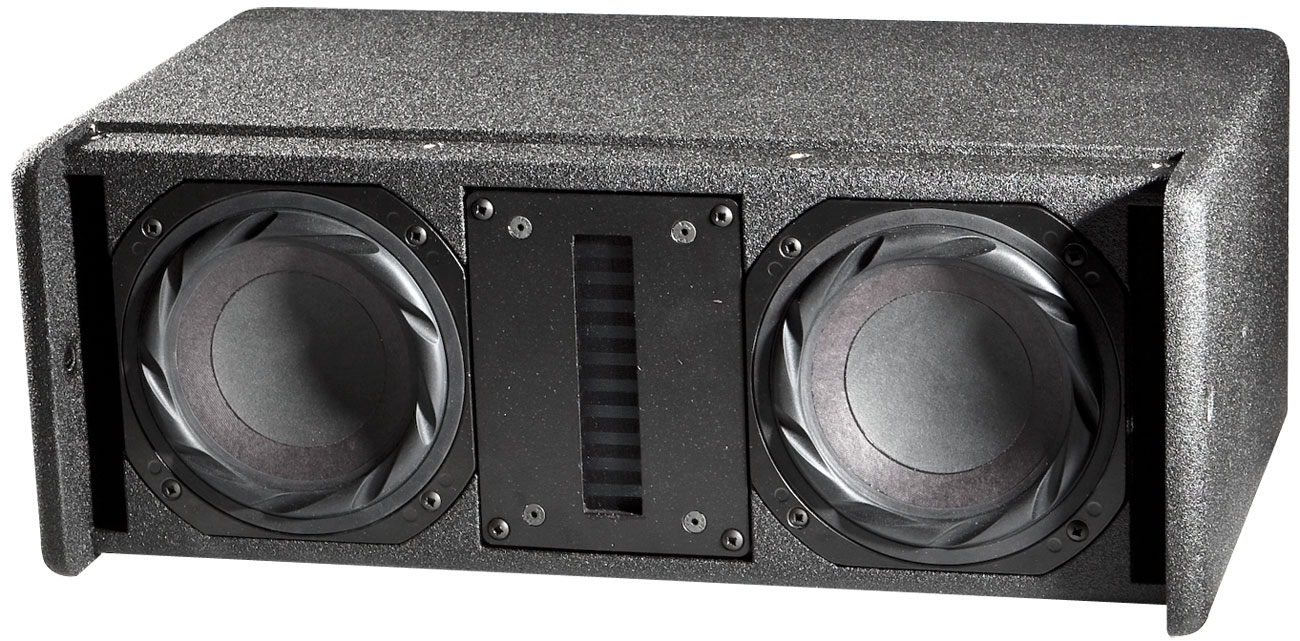

The FF1 maintains an extremely low physical profile by using two long excursion 6-inch woofers and a AMT (Air Motion Transformer) high frequency driver in a horizontal Mid-Tweeter-Mid configuration. The internal crossover allows direct connection to any amplification source without cumbersome bi-amp operation, making for highly efficient set-up or installation.

Solid plywood cabinet construction ensures unmatched long term reliability in any application. All-metal punched grills protect the high quality speaker components.

The FF1 uses only the best top quality components to provide excellent sound re-enforcement for the most expensive seats in the house.

Specifications
Configuration Passive Bi-amplified (processor controlled)
Driver Components (HF) AMT driver in MTM Configuration
Driver Components (LF/MF) 6-inch long excursion drivers (x2)
Continuous Power 500 watts
Frequency Response 80Hz - 20kHz (with recommended DSP processing)
Nominal Impedance 8 ohms
Sensitivity (1w/1m) 95dB
Calculated Maximum SPL 121dB
Nominal Coverage Horizontal: 90°
Vertical: 30°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL2 in parallel (x2)
Dimensions (DWH, inches) 12.3 x 20.4 x 7.7
Dimensions (DWH, cm) 31.2 x 51.8 x 19.6
Weight (lbs/kg) 27.5 / 12.5
Specifications subject to change without notice
